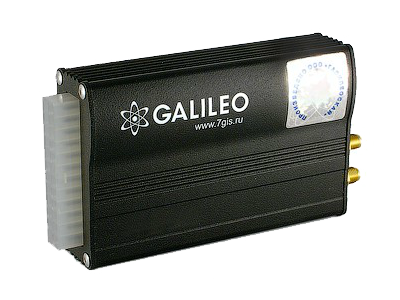

Galileosky 1.9 является GPS трекером специально разработаным для управления парком, а также личных потребностей транспортных средств и владельцев фургонов.
Он может быть установлен в порт OBDII для чтения на борту данных ПК, как уровень топлива, расход топлива, оборотов двигателя, положение дроссельной заслонки, скорости, нагрузки на двигатель, температура охлаждающей жидкости, DTC кодов ошибок и др.
Устройство имеет широкий спектр возможностей в связи с несколькими входами, выходами и интерфейсами. Кроме того, он оснащен внешними GNSS и GPRS антеннами.
- Есть тест-драйв Нет
- Связь GPS / ГЛОНАСС / GSM
- Установка профессиональная
- Микрофон Нет
- Выход на связь постоянно (онлайн)
- Влагозащита Нет
- Доп. аккумулятор Нет
- Производитель GalileoSky
- Модификации Нет
Server Integration
Server IP Address | 92.63.111.80 |
|
Server port | 47773 |
|
Integrated on | 11/12/2011 |
|
Revised on | 14/03/2014 |
|
General information
Purpose | Vehicle |
|
Installation | Professional |
|
Housing
Weight | 300 g (10.58 oz.) |
|
Size | 103,0x65,0x28,0 mm (4.06x0x2.56x0x1.1x0 in) |
|
GNSS Location
Internal antenna (GNSS) |
|
|
External antenna (GNSS) |
|
|
GPS |
|
|
GLONASS |
|
Connectivity
Cellular network type | GSM 900/1800 |
|
Internal antenna (Connection) |
|
|
External antenna (Connection) |
|
|
Cellular network generation | 2G |
|
Interfaces
1-Wire interface |
|
|
RS232 interface |
|
|
Number of RS232 interfaces | 2 |
|
Number of outputs | 3 |
|
Number of inputs (all types) | 4 |
|
ACC/Ignition input |
|
|
Discrete inputs |
|
|
Analog inputs |
|
|
Impulse inputs |
|
|
Frequency inputs |
|
|
Outputs |
|
Hardware features
Battery capacity | 600 mAh |
|
Built-in battery |
|
Tracking features
Tracking modes | Continuous |
|
Location by Cell ID |
|
|
Smart power consumption |
|
Events monitoring
Input change |
|
|
Antenna cut off |
|
|
Towing |
|
Self monitoring
GNSS signal level |
|
CAN/OBDII reading
CAN/OBDII reader type |
|
|
CAN/OBDII parameters | Fuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other |
|
DTC codes reading |
|
Remote management
Server connection setup over SMS |
|
|
Remote device configuration | Yes (over GPRS) |
|
Remote outputs control | Yes (over GPRS) |
|
